Wood Heater

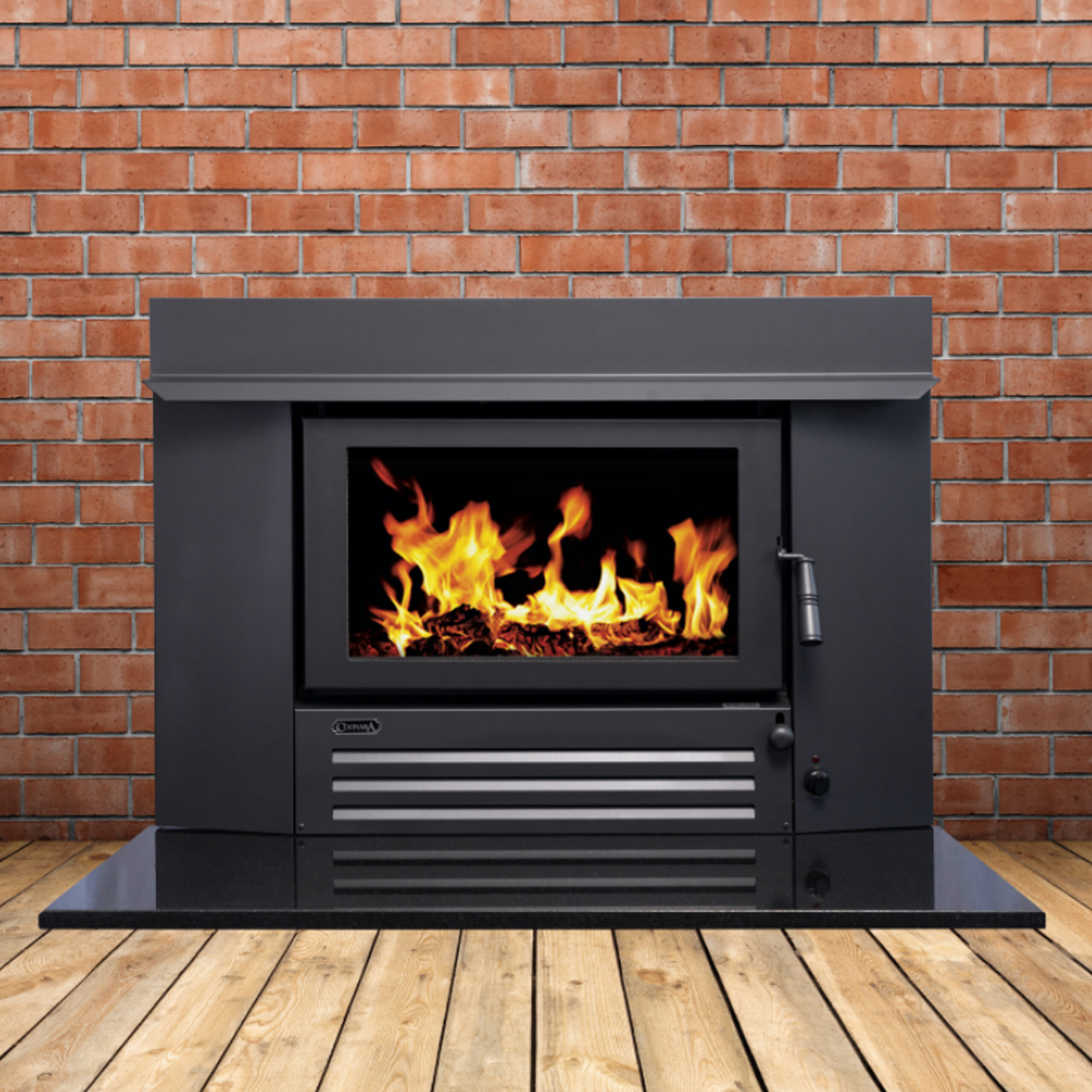

The Settler I600 is a finely crafted woodheater that will heat up to 28 squares* and will add elegance to your fireplace. With a large self‑cleaning viewing window, cast iron liners and 3 speed fan, it will provide optimum warmth.

Where tradition meets innovation.

• Australian made and owned

• Glass size 562mm wide 312mm high

• 3 speed fan included – must be used while heater is operating. Refer Owners Manual

• Standard Colour – charcoal

• Durable cast iron lined box

• 10 year firebox warranty

Specifications

HEATING CAPACITY UP TO SQUARES
28 squares

PARTICULATE EMISSIONS (G/KG)
1.2 G/Kg

AVERAGE HEATING EFFICIENCY
62.0

AVERAGE PEAK POWER (KW)
12.0Kw

FIRE BOX DIMENSIONS (MM)
595H x 695W x 470D

OVERALL DIMENSIONS (MM)
735H x 1100W x 580D

BACK OF HEATER TO CENTRE OF FLUE (MM)
160

CLEARANCE TO COMBUSTIBLE MATERIALS (MM)
Rear: 25
Side: 25
(When using zero clearance box)

HEARTH DISTANCE (mm)
Either side of door opening: 200
Front: 450

DESPATCH WEIGHT (KG)
173
