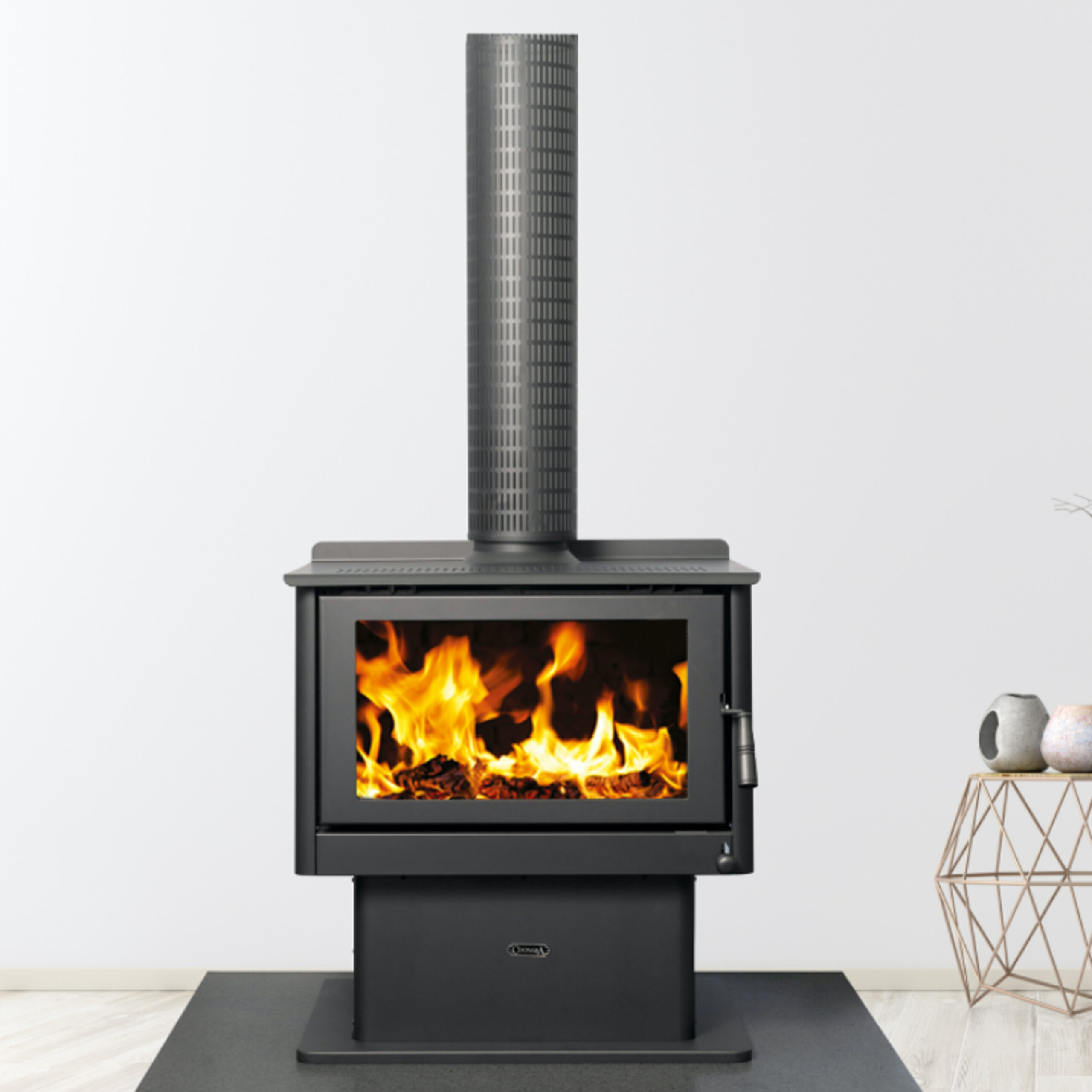

Wood Heater

The Settler C600 makes Woodheating easy. It has all the character and warmth you would expect from this Aussie Icon. You can simply sit back and relax watching the flames flickering before you. With a self cleaning viewing window, durable cast iron lined box and a 3 speed fan, it can comfortably heat up to 30 squares* of open plan living.

Where tradition meets innovation.

• Australian made and owned

• Glass size 562mm wide 312mm high

• 3 speed fan included – must be used while heater is operating. Refer Owners Manual

• Standard Colour – charcoal

• Side panels come plain or with trees

• Optional base

• Durable cast iron lined box

• 10 year firebox warranty

Specifications

HEATING CAPACITY UP TO SQUARES
30 squares

PARTICULATE EMISSIONS (G/KG)
1.3 G/Kg

AVERAGE HEATING EFFICIENCY
63.0

AVERAGE PEAK POWER (KW)
15.1Kw

FIRE BOX DIMENSIONS (MM)
400H x 600W x 435D

OVERALL DIMENSIONS (MM)
850H x 780W x 610D

BACK OF HEATER TO CENTRE OF FLUE (MM)
165

CLEARANCE TO COMBUSTIBLE MATERIALS (MM)
Rear: 100
Side: 375
Corner: 150

HEARTH DISTANCE (mm)
Either side of door opening: 200
Front: 500

DESPATCH WEIGHT (KG)
182
