Wood Heater

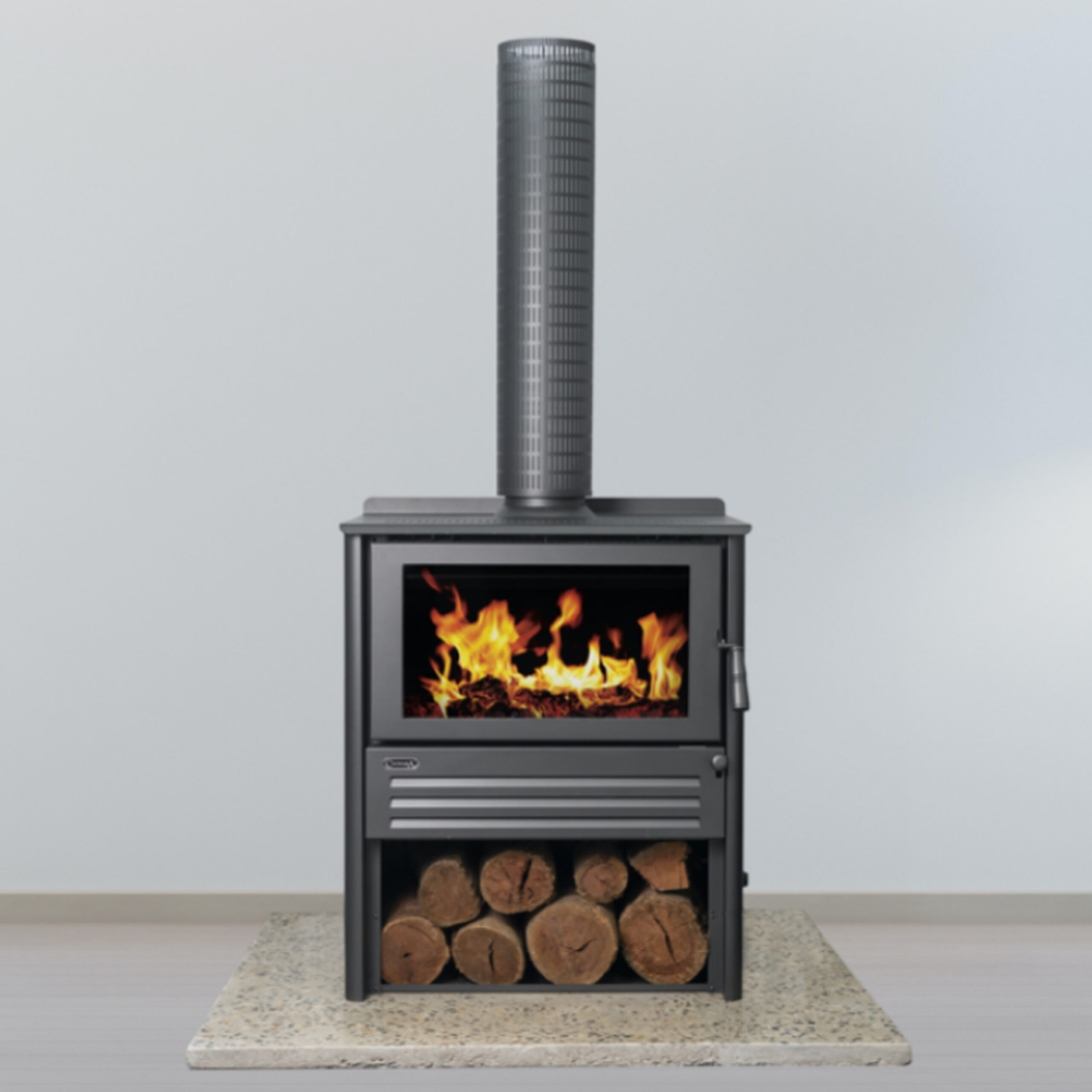

The Settler 600 Ranch is a recent addition into the Coonara family. This heater will not only heat up to 30 squares* of open plan living, but will add style and appeal to any household. You have the added bonus of storing your wood underneath, means you don’t have to venture outside on those cold & chilly nights.

Where tradition meets innovation.

• Australian made and owned

• Glass size 562mm wide 312mm high

• 3 speed fan included – must be used while heater is operating. Refer Owners Manual

• Standard Colour – charcoal

• Side panels come plain or with trees

• Durable cast iron lined box

• 10 year firebox warranty

Specifications

HEATING CAPACITY UP TO SQUARES
30 Squares

PARTICULATE EMISSIONS (G/KG)
1.3

AVERAGE HEATING EFFICIENCY
63.0

AVERAGE PEAK POWER (KW)
15.1

FIRE BOX DIMENSIONS (MM)
400H x 600W x 435D

OVERALL DIMENSIONS (MM)
950H x 780W x 560D

BACK OF HEATER TO CENTRE OF FLUE (MM)
165

CLEARANCE TO COMBUSTIBLE MATERIALS (MM)
Rear: 100
Side: 375
Corner: 150

HEARTH DISTANCE (mm)
Either side of door opening: 200
Front: 500

DESPATCH WEIGHT (KG)
182
