Wood Heater

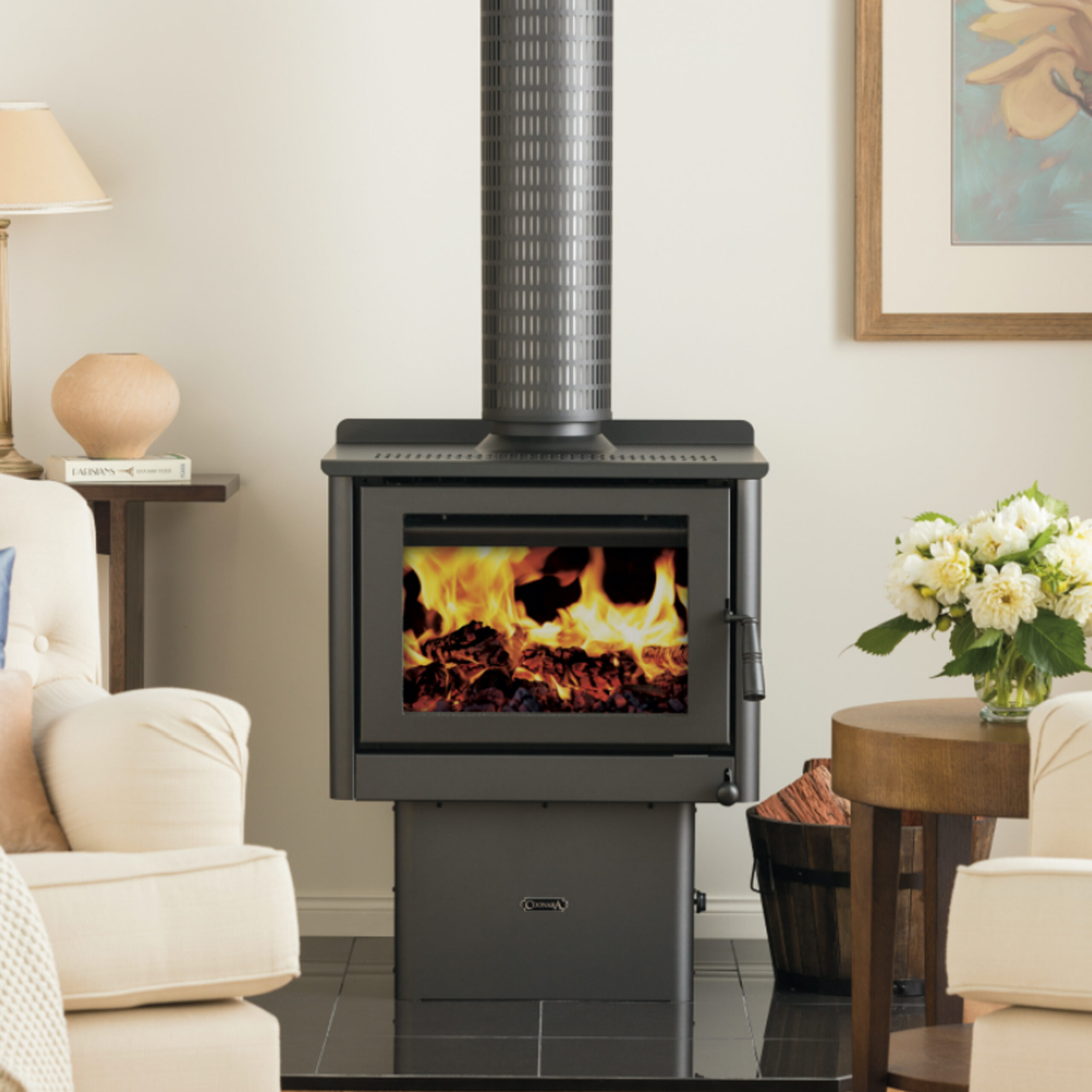

The Settler C500 has all the character and warmth you would expect from this Aussie Icon. You can simply sit back and relax watching the flames flickering before you.

With a large self cleaning viewing window, durable cast iron lined box and a 3 speed fan, it can comfortably heat up to 22 squares* of open living area.

Where tradition meets innovation.

• Australian made and owned

• Glass size 433mm wide 312mm high

• 3 speed fan included – must be used while heater is operating. Refer Owners Manual

• Standard Colour – charcoal

• Side panels come plain or with trees

• Optional base

• Durable cast iron lined box

• 10 year firebox warranty

Specifications

HEATING CAPACITY UP TO SQUARES
22 squares

PARTICULATE EMISSIONS (G/KG)
1.3 G/Kg

AVERAGE HEATING EFFICIENCY
72.0

AVERAGE PEAK POWER (KW)
12

FIRE BOX DIMENSIONS (MM)
400H x 470W x 395D

OVERALL DIMENSIONS (MM)
840H x 650W x 565D

BACK OF HEATER TO CENTRE OF FLUE (MM)
165

CLEARANCE TO COMBUSTIBLE MATERIALS (MM)
Rear: 75
Side: 230
Corner: 50

HEARTH DISTANCE (mm)
Either side of door opening: 200
Front: 375

DESPATCH WEIGHT (KG)
155
